Alusong Natural- Design

Alusong Natural- Design

ALUSONG Design series have special surface, color diversity, strong impact resistance, seismic resistance, easy processing, quick construction, and it has characteristics of adapting various kinds of harsh environment. In line with the world trend, it is the first selection of decorative panel materials. After the products listed, they are respect
分享
0
  • 颜色和表面
  • 产品范围
  • 产品属性
  • 产品应用
  • 技术数据
颜色和表面

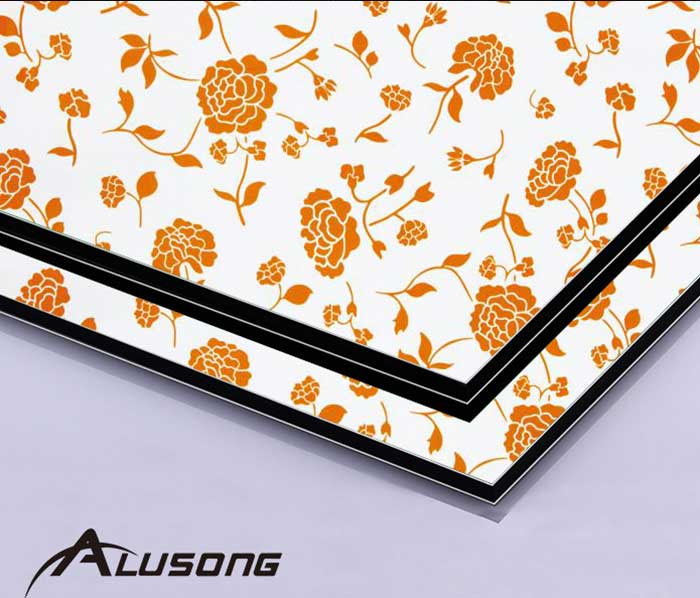

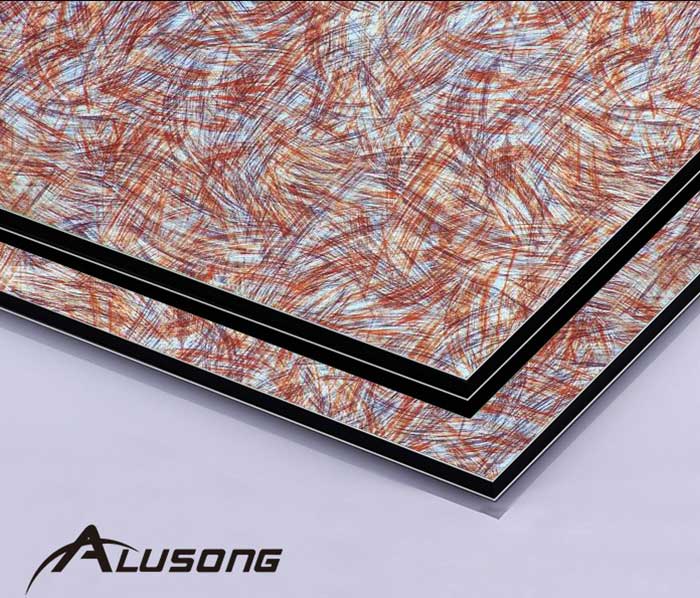

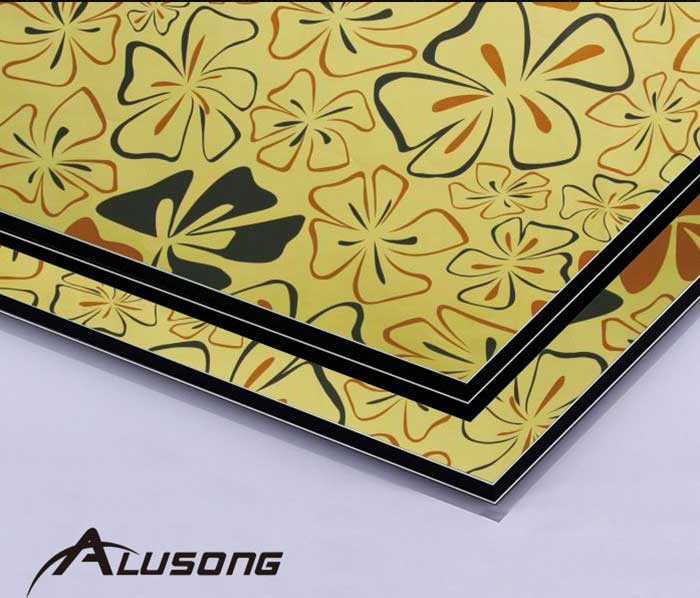

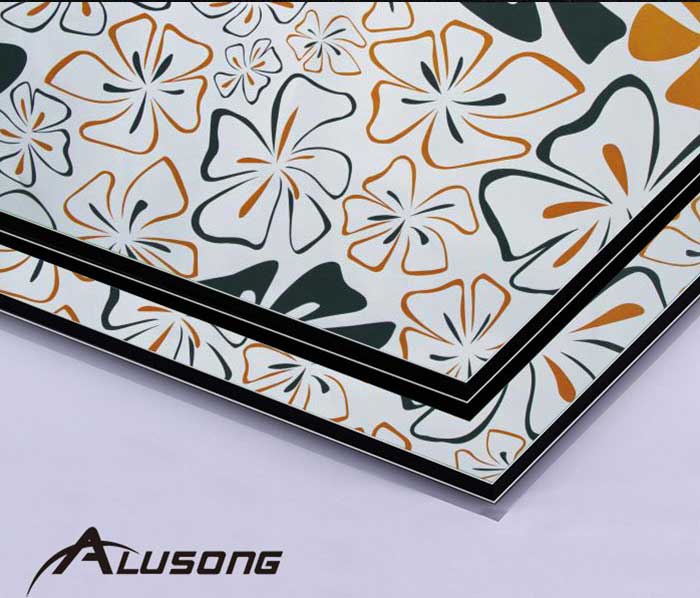

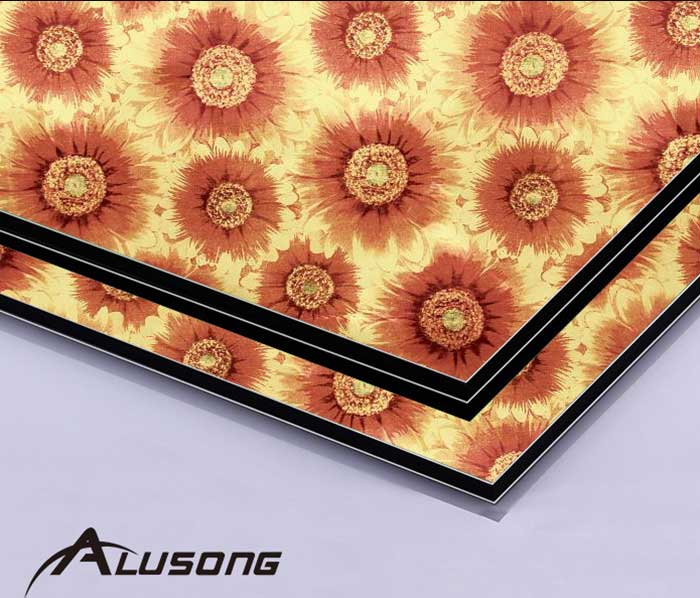

ALUSONG Designs vividly imitate the subtle texture of different pictures and easy to clean surface, can be directly wiped with water once dust contamination, it belongs to green and environmentally-friendly building materials, has long service life and wear resistance. More than 1000 designs can be choose.



产品范围
Surface coatingPolyester design coating
Aluminum alloyAA1100 series
Aluminum skin0.08mm,0.10mm,0.12mm,0.15mm,0.21mm,0.25mm,0.30mm,0.35mm,0.40mm,0.45mm,0.50mm
Panel thickness3mm, 4mm,5mm,6mm
Panel width1220mm,1250mm,1500mm
Panel length2440mm,3050mm,5000mm
Backing coatingPrimer coating
Glossy40%-70%


Dimensional tolerance:

Panel width: ±2mm        Panel length:±3mm    Panel thickness:±0.2mm    Panel diagonal: ≤5mm            Aluminum sheet thickness: ±0.01mm


产品属性
Alusong Natural- Design

Diversified colors
High resistance to peeling

Superior weather resistance

Light weight and easy to process

Excellent fire resistance properties

Coating evenness

Easy for maintenance


产品应用

1. Wall curtain, Cladding and Facade

2. Interior decoration and furniture

3. Exterior renovation for old buildings

4. Subway and airports

5. Industry plants and materials,

Vehicle and boat materials


  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
技术数据


DescriptionTest standardPolyester
Thickness of coatingPolyester paint ≥16um16um to 18um
Coating flexibility (T-bend)Polyester paint≥3T3T
Color different△E ≤ 2.0(follow color sample)ΔE ≤ 2.0
Pencil hardness≥HB≥2H
Chemical resistance2%HCI or 2% NaOH test in 24 hours -No changeNo change
Coating adhesion≥ 1grade for 10810mm2gridding test1grade
Resist solvent100times with Dimethylebnzene without changeNo change
Boiling water resistance2 hours without changeNo change
Peeling strength/stripping strengthAverage ≥5N/mm of 180oc peel off for panel with 0.21mm alu.skin5N/mm
Impact test for paint20KG.cm impact-paint no split for panelNo split
Abrasion resistance (L/Mil)NILNIL
Temperature resistance-40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average drop rate≤10%Change of glossy only, no paint Peel off
Coefficient of linear Thermal Expansion100℃ temperature difference2.4mm/n
Detergent resistance (3%)ASTM D2248No change
Humidity Resistance (3000hrs,100%RH,100°F)ASTM D2247No change
Salt spray resistance (3000hrs,5% salt)ASTM B117No change
Resistance to Staining600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2, color difference ≤4.0No change
