Alusong Plus- A2

Alusong Plus- A2

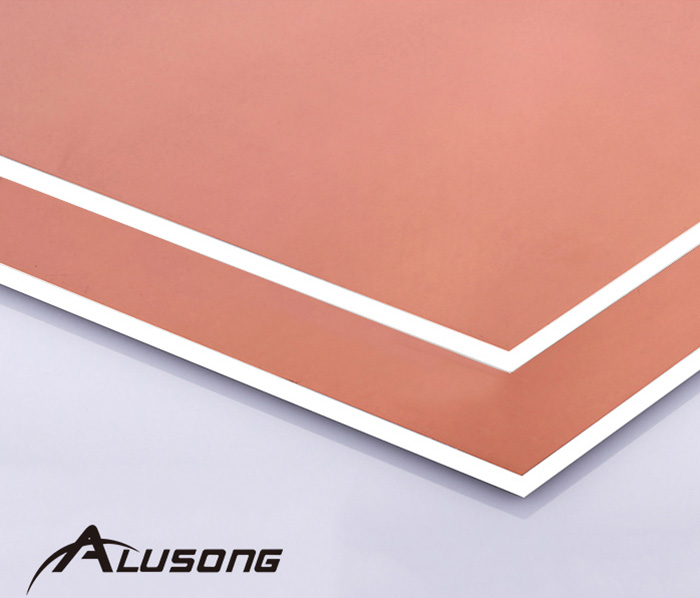

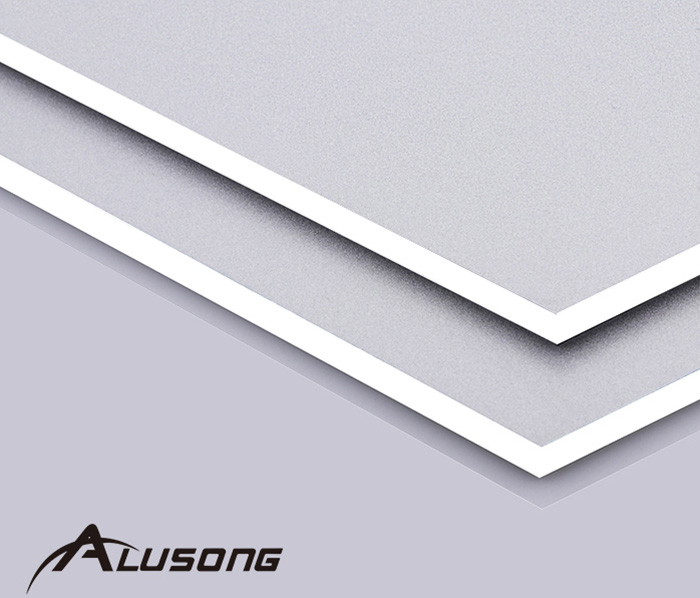

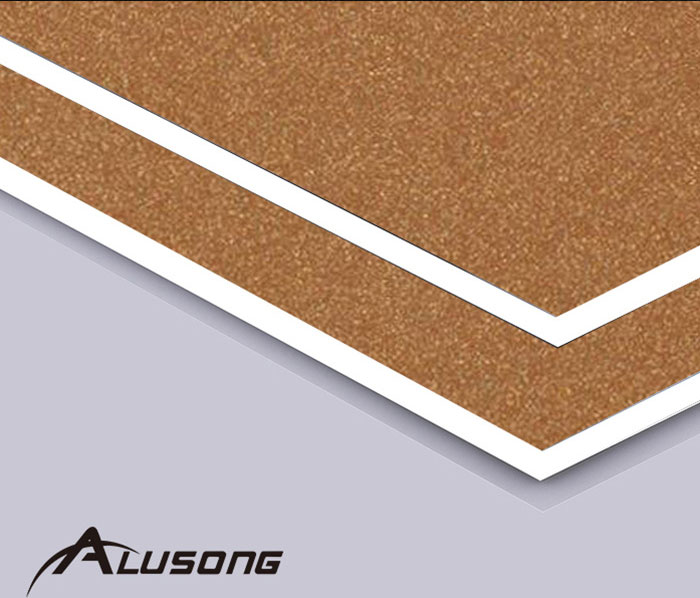

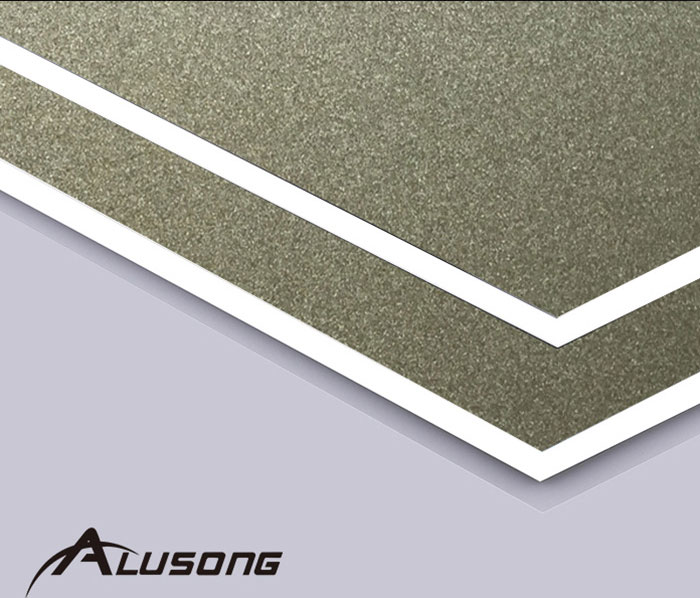

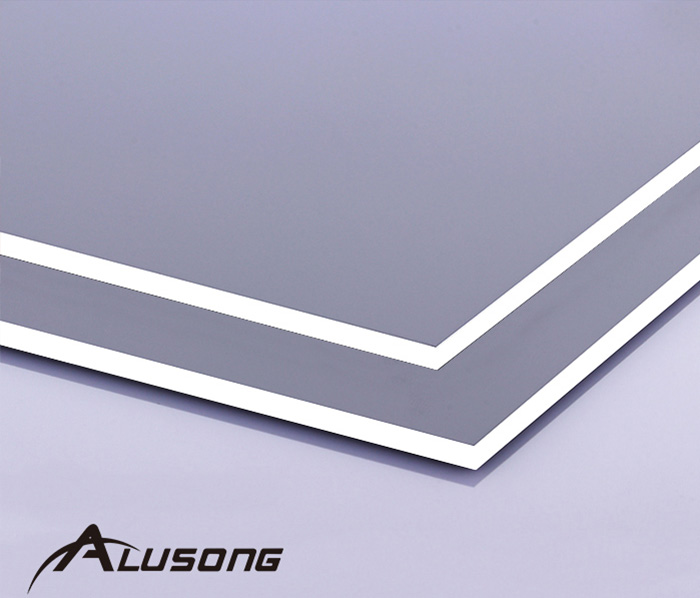

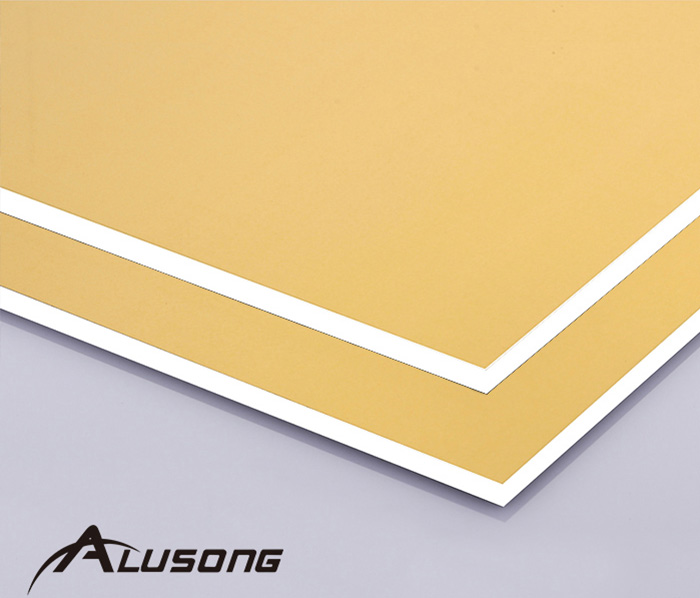

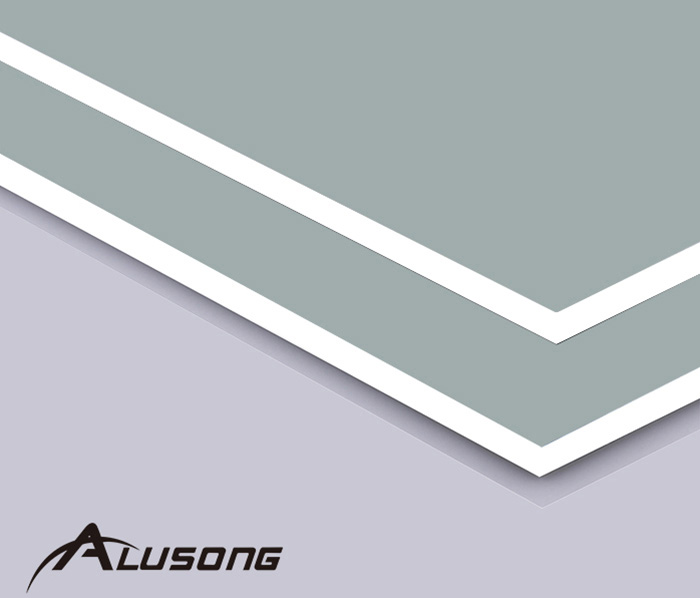

ALUSONG A2 core is a composite panel consisting of two coated aluminium sheets that are laminated to both sides of a non-combustible core. It meets the stringent fire-reaction requirements of the European fire certification EN 13501-1, class A2 while offering an unlimited creative freedom in terms of transformations, applications, designs and ...
分享
0
  • 颜色和表面
  • 产品范围
  • 产品属性
  • 产品应用
  • 技术数据
颜色和表面

ALUSONG A2 core is a composite panel which sandwiched by two layers of aluminum coating skin and non-combustion core. The decorative layer is coated with high performance PVDF system which supplied form KANAR 500 or HYLAR 5000 70% PVDF resin authorized paint company to ensure an excellent exterior durability while offer the more selections. These coating are finished on continuous process coil coating line, which make the color and gloss uniform are better than other coating process available in market.


产品范围
Aluminum alloyAA1100  AA3003 AA5005
Aluminum skin0.21mm,0.30mm,0.35mm,0.40mm,0.45mm,0.5mm
Panel thickness3mm,4mm,5mm,6mm
Panel width1220mm,1250mm,1500mm
Panel length2440mm,3050mm,4050mm
Surface treatmentPE&PVDF
Colors70 colors, RAL & PANTONE colors upon request
Customers sizeaccepted
Glossy20%-80%


Panel width: ±2mm        Panel length:±3mm

Panel thickness: ±0.2mm    Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.02mm


产品属性
Alusong Plus- A2

Raw material:

Base material: High strength aluminum alloy sheet

PE core material: Non-combustion mineral material  A2 grade

Surface coating: PVDF, Polyester, FEVE, NANO -PVDF, Spectra

Back coating: Primer coating

Product Properties:

*Safe &Fire Resistant

ALUSONG Fire Resistant Aluminum Composite Panel reaches A2-s1, d0, t0 grade according to the national standard GB 8624-2006, with non-combustible inorganic core material, which will not get fire and then resist fire spread while a building gets fire.

*Environmentally Friendly

It meets the national standard on green and environment protection for construction materials with the characteristics of innocently, no halogen, no smoke, non combustible no poison, odorless, heat-and sound-insulating, etc

*Weather Resistant &Anti-pollution

Coated with PVDF which is composed of HYLR5000 or KYNAR5000.It is good anti-aing for oxygen and light-heat, Strong durability in high and low temperatures, waterproof and moisture proof.




产品应用

1 Wall curtain, Cladding and Facade

2 Hotels and commercial mansions

3 Exterior renovation for old buildings

4 Subway and airports

5 Industry plants and materials,

6 Vehicle and boat materials


  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
技术数据

The contrast of fire-resist performance in different countries

Standard        China   Germany   U.S.A   France   U.K       Japan     Russia

Burning Degree| GB/T8627  DIN 4102  ASTM E84   BS 476   NFF 16-101  JIS K6911  30244-94

Few            A       A1,A2      NC     O      M0       1        T1

----------------------------------------------------------------------------------------------------------------------

Minor          B1       B1         A      1     M1,M2     2        T2

----------------------------------------------------------------------------------------------------------------------

Normal         B2       B2         B,C   2,3       M3      3        T4

----------------------------------------------------------------------------------------------------------------------

Serious         B3       B2                4      M4, M5     -        -



The level and combustion properties of names



Degree               Item                  Degree                Item

 A                  None-combustion                 B2                Combustion

------------------------------------------------------------------------------------------------------------------------------------------

 B1                 Hard-combustion                  B3                Combustion

-----------------------------------------------------------------------------------------------------------------------------------------

 Degree              Material                  The combustion performance indicators

-----------------------------------------------------------------------------------------------------------------------------------------

 None-combustion     Class A Material       According to GB/t8625 test, the average length of the remaining

                                         ≤35cm(Including any residual specimen ≥20cm) for each

                                         test and average flue gas temperature peak ≤150 ℃,no

                                         Specimen back burner the scene; According to GB/8627 test,

                                         Their smoke density levels (SDR) ≤ 15;

                                         According to GB/T14002 and GB/T14403 test, its calorific

                                         Value ≤16.8M/ ㎡

                                   Toxicity materials combustion flu gas of the entire

                                   non-lethal concentration of ≥ 25mg/L

----------------------------------------------------------------------------------------------------------------------

Hard-combustion     Class B1 Material       According to GB/T8626 test, its combustion properties should be

                                         met GB/T8626,and does not allow any dropping of combustion

                                         Burn the filter paper;

                                         According to GB/8625 test, the average of each specimen

                                         remaining length ≥ 15cm(Including any residual specimen

                                        Length ≥0cm),and average peak temperature of gas ≤ 200℃

                                        In each test

                                       According to GB/8627 test, their smoke density level (SOR)≤75
