Alusong Signage-Hollow

Alusong Signage-Hollow

ALUSONG Hollow panel features a corrugated plastic core sandwiched between two 0.30mm aluminium skins coated with a superior polyester paint finish. This innovative core structure makes a strong, lightweight panel, offering easy handling and providing maximum strength and stability. ALUSONG Hollow panel has an easy-peel protective film and is the..
分享
0
  • 颜色和表面
  • 产品范围
  • 产品属性
  • 产品应用
  • 技术数据
颜色和表面

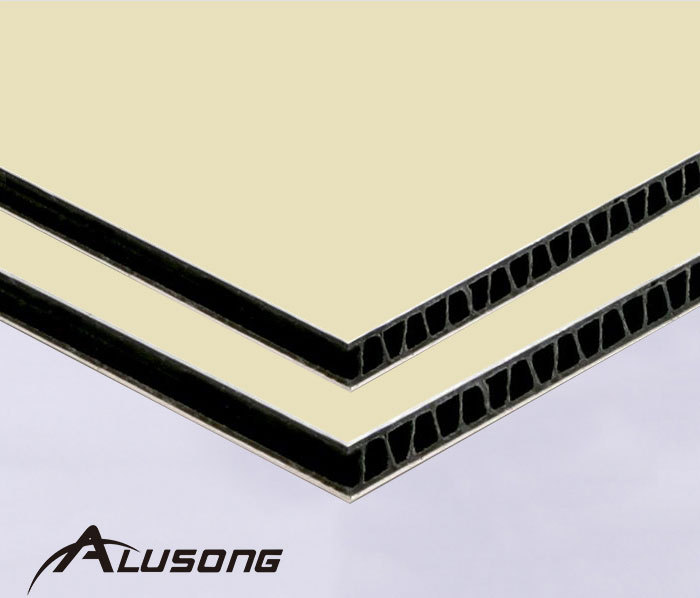

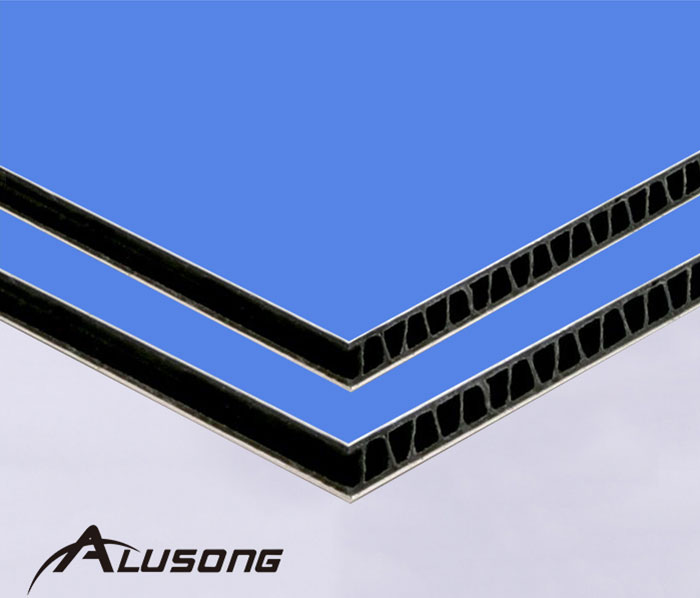

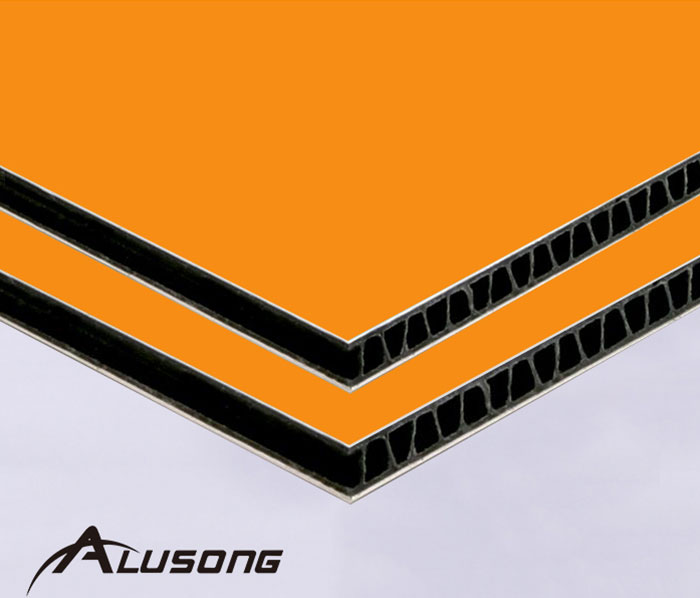

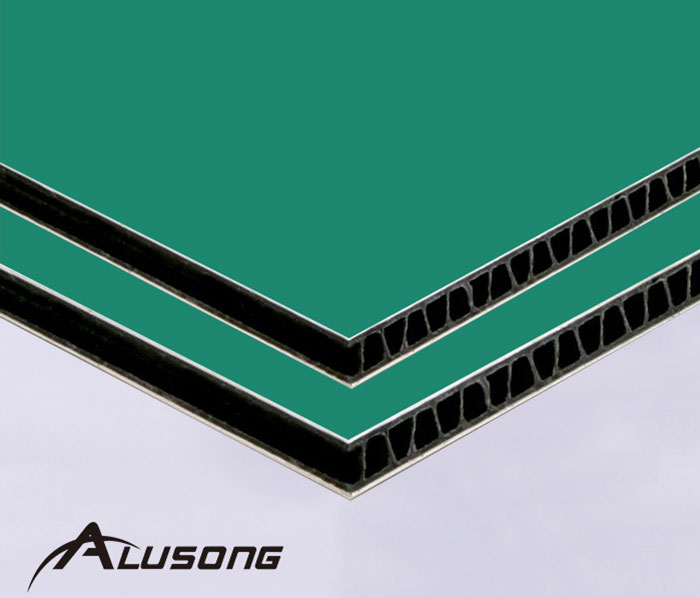

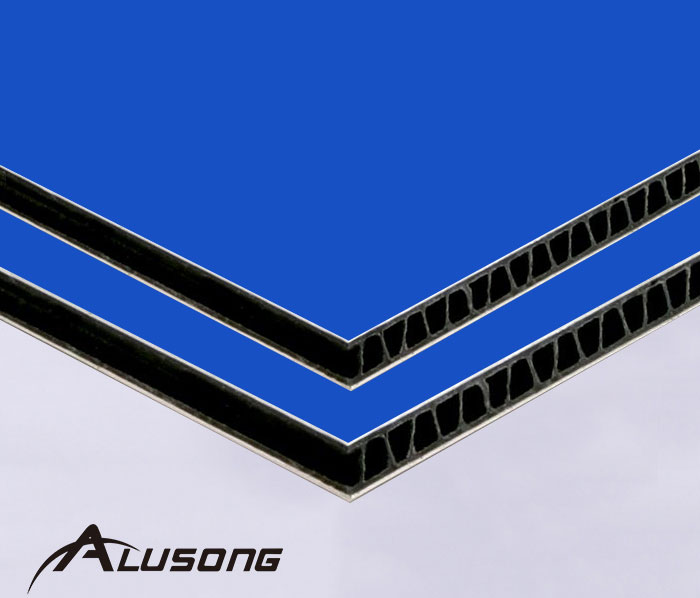

ALUSONG Hollow panel features a corrugated plastic core sandwiched between two 0.30mm aluminium skins coated with a superior polyester paint finish. This innovative core structure makes a strong, lightweight panel, offering easy handling and providing maximum strength and stability. ALUSONG Hollow panel has an easy-peel protective film and is the perfect base for vinyl. The panels are rigid, easy to install and can be easily fabricated for folding and forming. They are much lighter than standard Aluminium Composite Panels making them ideal for many applications.


ALUSONG Hollow panel are painted by a high-gloss, factory-baked, polyester paint coating.

The finish is smooth, durable and dirt resistant. It will not crack, chip, flake or peel even under harsh weather conditions. Colors shown are as the same as ALUSONG other products series as per customer’s request.



产品范围
Aluminum         AA1100  AA3003
Aluminum skin0.30mm,0.35mm,0.40mm,0.45mm,0.5mm
Panel thickness4mm,5mm,6mm
Panel width1220mm
Panel length2440mm
Surface treatmentPolyester
Colors70 colors, special colors available upon request
Customers sizeaccepted
Glossy20%-80%


Dimensional tolerance:

Panel width: ±2mm        Panel length:±3mm

Panel thickness: ±0.2mm    Panel diagonal: ≤5mm

Aluminum sheet thickness: ±0.01mm


产品属性
Alusong Signage-Hollow

· Field-tested through extensive freeze/thaw cycling tests with no significant structural panel failure

· Ideal for paints, digital inks (both UV or solvent cured), screen print inks, and pressure-sensitive vinyl

· Strong and lightweight, ALUSONG Hollow is the same weight as 1mm aluminum sheet metal yet 50 times stronger, 3.5kg per square meters

· Routs and cuts easily using standard carpentry tools; even bends around corners

· Wind-resistant—when properly fastened between two posts, ALUSONG HOLLOW can withstand winds over 120 mph

· Super weather-resistant


产品应用

· Sign Making, Way finding

· Direct UV & Screen Printing

· Standoff Lettering

· Lightweight Hanging Signs

· Displays &Vinyl Application

· Modular Sign Systems

· Hoarding Panels

· Exhibition Design

· Outdoor Advertising

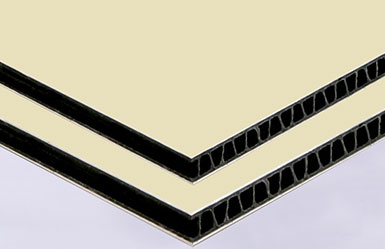

  • Application Application
  • Application Application
  • Application Application
  • Application Application
  • Application Application
技术数据
DescriptionTest standardPolyester
Thickness of coatingPolyester paint >=16um16um to 18um
Coating flexibility (T-bend)Polyester paint≥3T3T
Color differentΔE≦2.0(follow color sample)ΔE≦2.0
Pencil hardness≧HB≧2H
Chemical resistance2%HCI or 2%NaOH test in 24 hours -No changeNo change
Coating adhesion≧1grade for 10810mm2gridding test1grade
Resist solvent100times with Dimethylebnzene without changeNo change
Boiling water resistance2 hours without changeNo change
Peeling strength/stripping strengthAverage ≧5N/mm of 180oc peel off for panel with 0.21mm alu.skin5N/mm
Impact test for paint20KG.cm impact-paint no split for panelNo split
Abrasion resistance (L/Mil)NILNIL
Temperature resistance-40℃ to +80℃ temperature without change of color difference and paint peel off,peeling strength average dropprate≦10%Change of glossy only,no paint Peel off
Cofficient of linear Thermal Expansion100℃ temperature difference2.4mm/n
Detergent resistance (3%)ASTM D2248No change
Humidity Resistance (3000hrs,100%RH,100°F)ASTM D2247No change
Salt spray resistance (3000hrs,5% salt)ASTM B117No change
Resistance to Staining600h radiate in 800W/M2 in humidity condition,glossiness deviation less grade 2,color difference ≦4.0No change
